Brass Turned Parts
  • Brass Turned Parts
  • Brass Turned Parts
  • Brass Turned Parts

Brass Turned Parts

Brass precision turned parts. Material: C3604 fast cutting brass. Good at turning all kinds of brass parts, all kinds of valve parts, electrical parts, copper nuts, cell phone antennas, knurling (straight/bevel/mesh) and so on.

  • Specification
  • Products Recommended
  • It is processed by Star dual-spindle CNC centering machine. The spindle first uses tungsten-carbide twist drill to process the bottom hole, and then uses a boring cutter to finish the inner hole. Then use a roughing cutter with a 60 °R0.4 corner to process the rough outer diameter, and then use a fine turning tool with 35 ° R0.2 corner to finish the outer diameter to process the V-shaped groove, and then use a 90 ° truning tool to process the mesh. Use the D10.0 tungsten steel milling cutter to mill the H13 hexagon, and then use the 35° precision turning tool to remove the burr after machining the hexagon, and then use the tungsten-carbide center drill, the tungsten steel bit to process the threaded bottom hole, and then use the M2.5 tap to process the side thread. For the auxiliary axis, we use the tungsten steel drill to process the bottom hole, the boring cutter to process the rough inner hole, the boring cutter to finish the inner hole and the end face, then use the D4.0 milling cutter to process the inner hexagon.
    We Can Customize All Kinds Of Brass Turning Parts And Precision Turning Parts According To Customer's Requirements. The Delivery Is Fast And The Sample Delivery Time Is As Fast As 3 Days. After A Long Time Production, We Have All Kinds Of Machining Accessories. Basically, We Do Not Need To Reorder The Chuck And Tool Tapping Drill Etc. For Ordinary Brass Parts, We Can Directly Change The Machine To Complete The Production. The Product Is One Of Our Representative Brass Turning Parts, Stainless Steel Turning Parts With Thread, Step And Milling Hexagonal Edge.

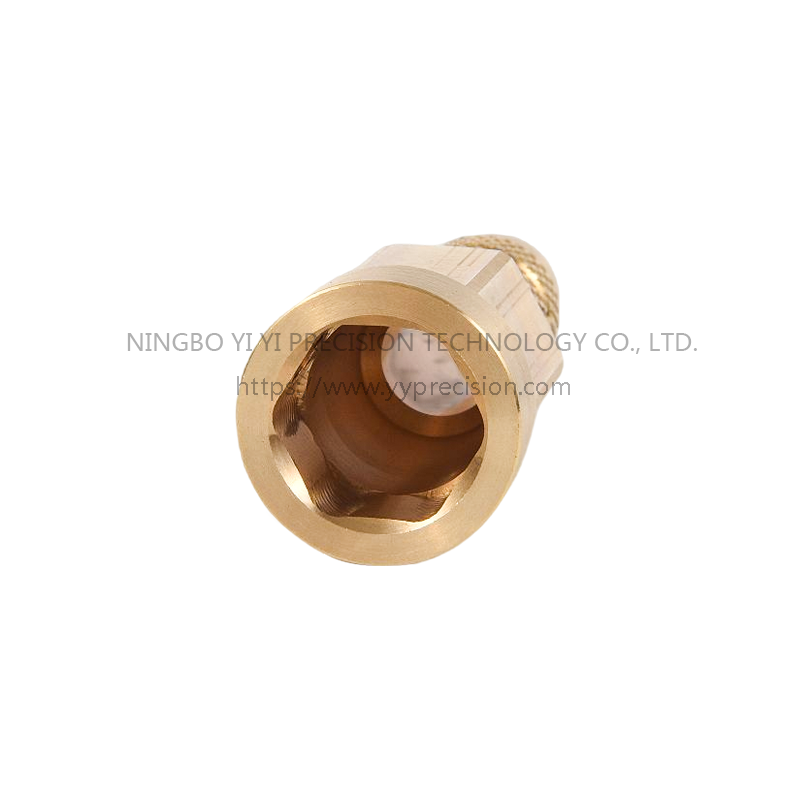

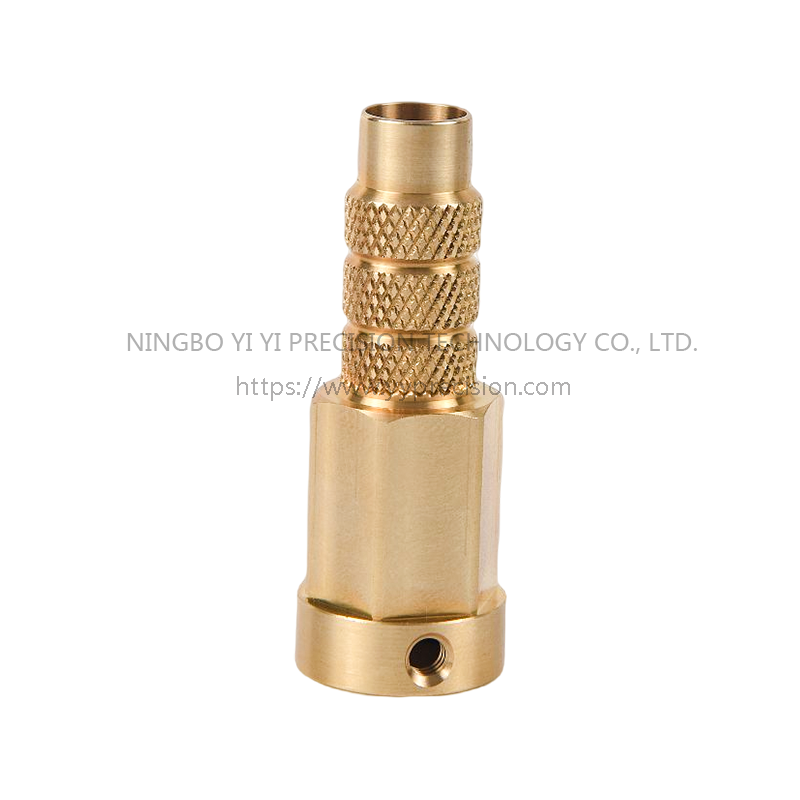

    the Large-sized Turned Part In The Picture Is 21 Od, H13 Hexagonal Opposite Side, 80mm Long, Deep Hole Inside, Knurling Position On The Machine Again To Reduce Time And Cost, Side Thread Is M2.5.
    Material: C3604 Side hole thread size: M2.5
    Size: Outer diameter 21mm*Length 75mm Weight:  90g
    Thread size:  M8 Color:  natural

Ningbo Yi Yi Precision Technology Co., Ltd.

Ningbo Yi Yi Precision Technology Co., Ltd. is leading China Brass Turned Parts suppliers and OEM/ODM Brass Turned Parts company, a combination of industry and trade enterprises, including Ningbo Xinhaocheng Precision Parts Co. With 1000 square meters of production plant and 30 employees. Its 2 companies focus on centering machine processing, production of precision non-standard parts, and has advanced imported equipment from Japan: STAR and Tsugami 5-9 axis centering machine, Citizen lathe, machining center and other equipment. The machine has the function of six-axis turning processing, which can complete drilling, turning, milling, tapping, boring, reaming, hobbing, shaping, etc. at one time, which can ensure the high precision, consistency and stable tolerance of shape of the parts. And according to the customer's needs, the power cutting tool function module with front and side milling function can be installed to complete the precision machining of complex shaft parts.
