Double-Headed POGOPIN
  • Double-Headed POGOPIN

Double-Headed POGOPIN

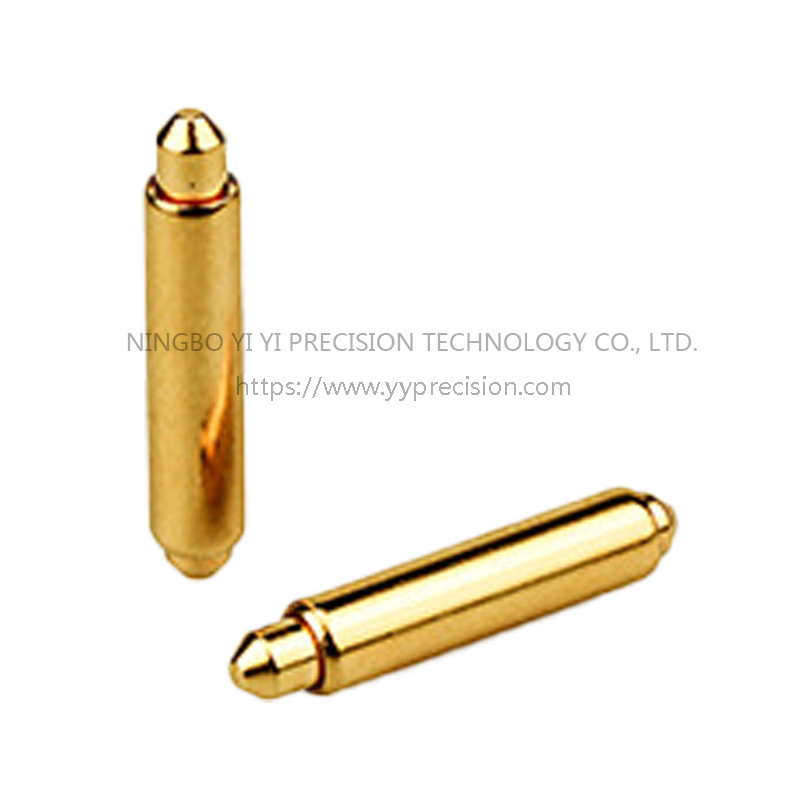

Double-Headed POGOPIN, Antenna Thimble Charging Pin Gold-Plated Probe High Current Thimble Spring Connector

  • Specification
  • Products Recommended
  • Cam Automatic Car Once Formed, Surface Treatment: Can Be Gold Plated. With Anti-Corrosion, Small Size, High Current , Can Be Processed Custom. For Wearable Devices, Notebooks, Medical Electronics Spring Needle Antenna Thimble Charging Probe.
    Material:  C3604 Spring:  SUS304
    Size:   Customizable Stretch:  72g±20g (Customizable)
    Current:  1-30A Customizable) Service Life:  100000 Times



    part No.

    A

    B

    C

    D

    E

    F

    Working stroke

    Stretch

    (g)

    Current

    (A)

    1

    1.3

    1.1

    0.4

    1.8

    1.48

    1

    0.2

    30

    1

    2

    1.5

    1.3

    0.4

    1.8

    1.48

    1

    0.2

    30

    1

    3

    1.7

    1.3

    0.4

    1.8

    1.48

    1

    0.2

    30

    1

    4

    1.9

    1.5

    0.4

    1.8

    1.48

    1

    0.4

    70

    1

    5

    2.1

    1.5

    0.4

    1.8

    1.48

    1

    0.4

    70

    1

    6

    2.3

    1.5

    0.4

    1.8

    1.48

    1

    0.4

    70

    1

    7

    2.5

    1.7

    0.4

    1.8

    1.48

    1

    0.6

    100

    1

    8

    2.7

    1.7

    0.4

    1.8

    1.48

    1

    0.8

    100

    1

    9

    2.9

    2

    0.4

    1.8

    1.48

    1

    0.8

    100

    1

    10

    3.1

    2.3

    0.4

    1.8

    1.48

    1

    0.8

    100

    1

    11

    3.3

    2.3

    0.4

    1.8

    1.48

    1

    0.8

    100

    1

    12

    3.5

    2.6

    0.4

    1.8

    1.48

    1

    0.8

    100

    1

    13

    3.7

    2.6

    0.4

    1.8

    1.48

    1

    0.8

    100

    1

    14

    4

    2.6

    0.4

    1.8

    1.48

    1

    0.8

    100

    1

    15

    4.2

    3

    0.4

    1.8

    1.48

    1

    1

    120

    1

    16

    4.4

    3

    0.4

    1.8

    1.48

    1

    1

    120

    1

    17

    4.5

    3.3

    0.4

    1.8

    1.48

    1

    1

    70

    1

    18

    5

    3.3

    0.4

    1.8

    1.48

    1

    1

    70

    1

    19

    5.5

    4.3

    0.4

    1.8

    1.48

    1

    1

    70

    1

    20

    6

    4.3

    0.4

    1.8

    1.48

    1

    1

    70

    1

    21

    6.5

    5.3

    0.4

    1.8

    1.48

    1

    1

    70

    1

    22

    7

    5.3

    0.4

    1.8

    1.48

    1

    1

    70

    1

    23

    7.5

    5.3

    0.4

    1.8

    1.43

    1

    1

    70

    1

    24

    8

    5.3

    0.4

    19

    1.48

    1

    1

    70

    1

    25

    9

    7.3

    0.4

    1.8

    1.48

    1

    1

    70

    1

    26

    10

    7.3

    0.4

    1.8

    1.48

    1

    1

    70

    1

    27

    11

    7.3

    0.4

    1.8

    1.48

    1

    1

    70

    1

    28

    12

    10.3

    0.4

    1.8

    1.48

    1

    1

    70

    1

    29

    13

    10.3

    0.4

    1.8

    1.48

    1

    1

    70

    1

    30

    14

    10.3

    0.4

    1.8

    1.48

    1

    1

    70

    1

    31

    15

    12.3

    0.4

    1.8

    1.48

    1

    1

    70

    1



Ningbo Yi Yi Precision Technology Co., Ltd.

Ningbo Yi Yi Precision Technology Co., Ltd. is leading China Double-Headed POGOPIN, Antenna Thimble Charging Pin Gold-Plated Probe High Current Thimble Spring Connector suppliers and OEM/ODM Double-Headed POGOPIN, Antenna Thimble Charging Pin Gold-Plated Probe High Current Thimble Spring Connector company, a combination of industry and trade enterprises, including Ningbo Xinhaocheng Precision Parts Co. With 1000 square meters of production plant and 30 employees. Its 2 companies focus on centering machine processing, production of precision non-standard parts, and has advanced imported equipment from Japan: STAR and Tsugami 5-9 axis centering machine, Citizen lathe, machining center and other equipment. The machine has the function of six-axis turning processing, which can complete drilling, turning, milling, tapping, boring, reaming, hobbing, shaping, etc. at one time, which can ensure the high precision, consistency and stable tolerance of shape of the parts. And according to the customer's needs, the power cutting tool function module with front and side milling function can be installed to complete the precision machining of complex shaft parts.

Company Certificate

We regard quality as our life. From quotation, customer order, equipment, material, production, surface treatment, to inspection, to final packaging, every step must be perfect.

Our Strength

OUR RECENT NEWS

Contact us

If you need it, please contact us!

We regard quality as our life. From quotation, customer order, equipment, material, production, surface treatment, to inspection, to final packaging, every step must be perfect.

  • Address:

    No. 8, Xuyang Daokou South Road, Daqi, Beilun District, Ningbo City, Zhejiang Province, China.

  • Phone:

    +86-18991368108/13736075594

  • Fax:

    +86-0574-86110696

  • Email:

    Grace@YY-Precision.com

Industry knowledge extension of this product

What is Double-Head Pogo Pin
The pin has two contact points or spring-loaded heads on the same pin body. These pins are useful in situations where multiple electrical connections need to be made using a single pin, such as in test fixtures, programming adapters, or docking connectors.
Key features and benefits of Double-Head Pogo Pins may include:
1. Compact Design: Double-Head Pogo Pins allow multiple connections with minimal space requirements, making them suitable for applications with tight spatial constraints.
2. Reliable Contact: The spring-loaded nature of the pins ensures a reliable and consistent electrical connection, even in situations with slight misalignment or surface variations.
3. Low Insertion Force: Pogo pins require relatively low insertion force, making them ideal for applications where delicate electronic components may be involved.
4. High Current Capacity: Despite their small size, Double-Head Pogo Pins can often carry relatively high electrical currents, making them suitable for power connections as well as signal connections.
5. Durability: Pogo pins are designed to withstand thousands of insertion cycles, providing a long-lasting and durable connection solution.
6. Versatility: Double-Head Pogo Pins are available in various sizes and configurations, allowing them to be used in a wide range of electronic applications.
